1. Extruder: 1 set
(1) Screw diameter: 80mm, Rotation speed of screw: 0～80 rpm.
(2) L:D: 30:1, Material of screw: 38CrMoALA ,
(3) RKC pressure automatic feedback system which can adjust the screw speed automatically.
(4) Material of barrel heater: Cast aluminium with stainless steel insulation layer.
(5) Metering pump, rotation speed: 0-45 rpm.
(6) Round spinneret: 1 set.
(7) Two color dosing unit: 1 set
2. Cooling water tank: 1 set
(1) The tank is made by SS 304.
3. Seven roller stretching unit A
(1) Seven variable diameter rollers made by steel pipe with hard chrome plating.
(2) Steel box with accurately grind gear makes the rollers run smoothly.
(3) Equip 1 pressing roller.
4. Overflow type hot water tank: 1 set
(1) Tank size: 4000mm
(2) Electric heating pipe is in the tank.
(3) Water removal device: 2 sets with suction.
5. Seven roller stretching unit B
(1) Seven variable diameter rollers made by steel pipe with hard chrome plating.
(2) Steel structure box with accurately grind gear makes the rollers run smoothly.
(3) Equip 1 pressing roller.

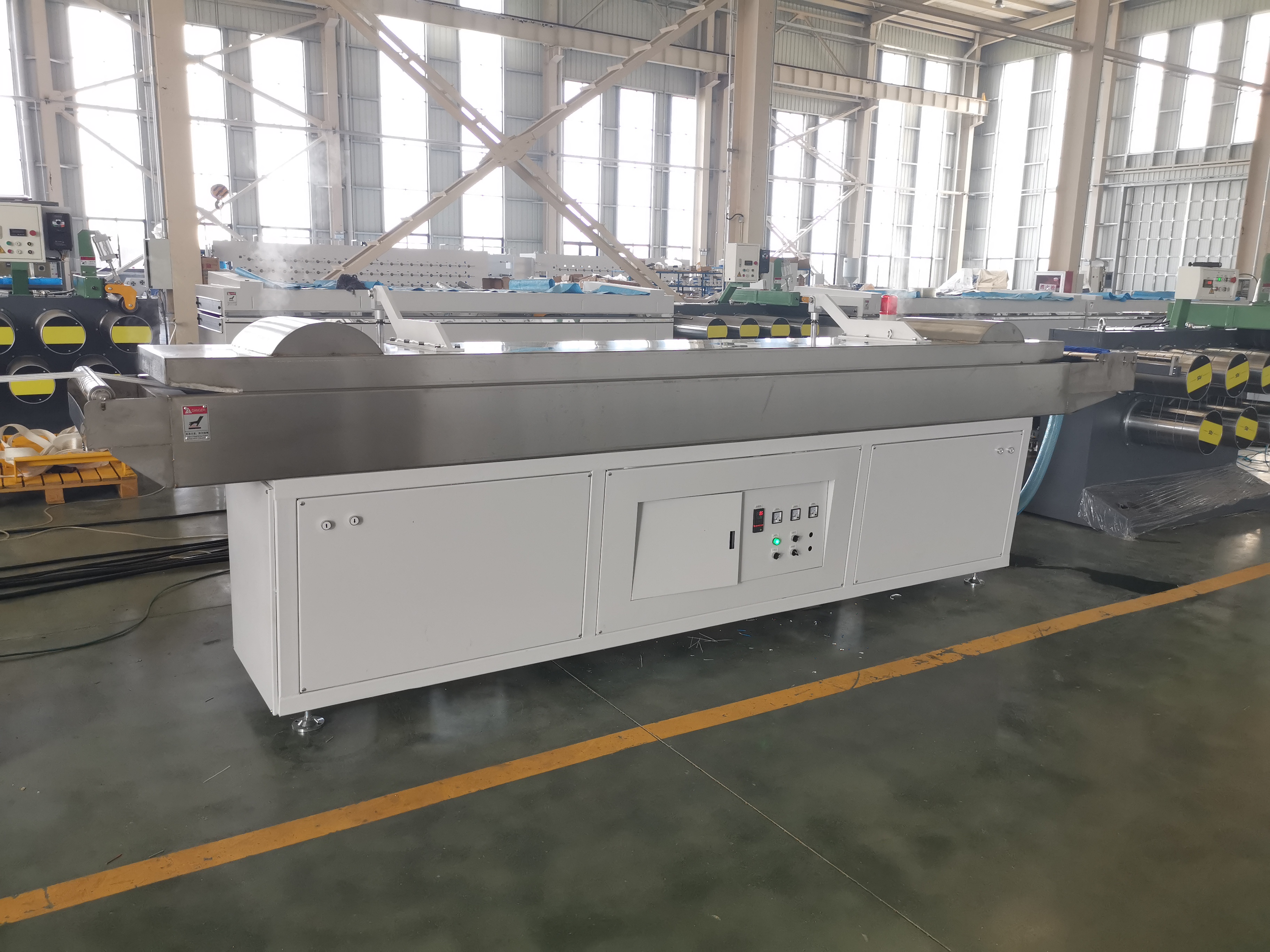

6. Double layers hot blast stretching oven: 1 set
(1) Oven length: 4000 mm
(2) Heating power 23kw×2
7. Seven roller stretching unit C, with brake resistor
(1) Seven variable diameter rollers made by steel pipe with hard chrome plating.
(2) Steel structure box with accurately grind gear makes the rollers run smoothly.
(3) Equip 1 pressing roller.
8. Double layers hot blast stretching oven: 2 sets
(1) Oven length: 5000 mm
(2) Heating power 23kw×2
(3) Special design of hot air channel.
9. Seven roller stretching unit D.
(1) Seven variable diameter rollers made by steel pipe with hard chrome plating.
(2) Steel structure box with accurately grind gear makes the rollers run smoothly.
(3) Equip 1 pressing roller.
10. Lubricating system: 1 set
(1) Frequency control of speed

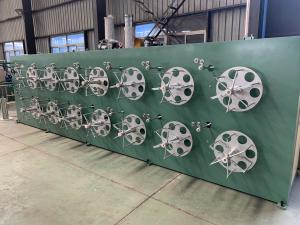

11. Spindle winder: 24 spindles
(1) Spool and bobbin are as sample.
(2) Winding motor: 15KG
12. Waster yarn collectors: 1 set
Specification:
| Screw diameter | Φ80mm |
| Raw material | Nylon | Filament size | 1-3mm |
| Capacity | 80Kg/H | Filament shape | round |
| Screw L:D | 30:1 | Stretching unit | 4 sets |
| Screw material | 38CrMoALA | Winder | 8 spindles |
| Max linear speed | 160m/min | Instillation power | 250Kw |
| Nozzle holes | 6 holes | Overall size | 48×2.8×2.8m |
Picture:
